Compression Load Cell - LM series

Compression Load Cell – LM series

The coin-shaped load cells are compact compression sensors designed for testing in tight or unstable spaces. They offer capacities ranging from 10 N up to 20 kN and can be used with external indicators or amplifiers. Optional configurations include separated sensor models and eZ‑Connect interchangeable sensor setups, as well as custom flexible-arm versions for safely reaching specific testing positions.

Tags: Ultra thin, Coin shape, Lo-Mid Force, Hi Force, Compression Only, eZ-Connect

Contact us for prices

Categories: , ,

Description

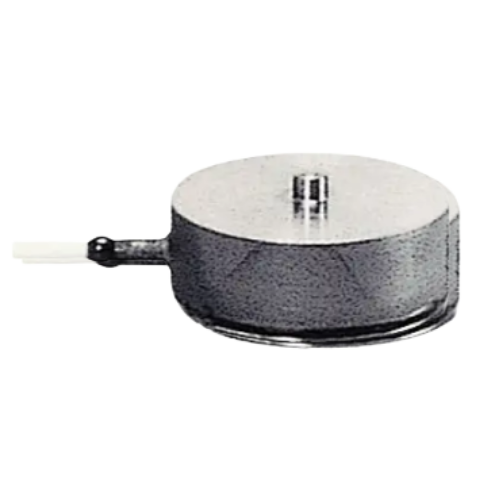

The coin-shaped load cell is a standard sensor designed specifically for compression, with a capacity of 20 kN. Compressive force is applied to the raised tip for measurement.

Coin Shaped Load Cell– LM series by Imada Specifications

CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR LM series

LM/LC Specifications

Options Available for Load Cell Cables

Features of LM series

  • Thin and compact design allows compression testing in tight or unstable environments
  • Available in a wide capacity range from 10 N to 20 kN while maintaining a compact form
  • Offered as a separated sensor force gauge with a dedicated sensor for specific measurement applications
  • Part of the eZ-Connect series, enabling interchangeable sensors to work with a single eZT amplifier across various tests
  • Custom models with flexible arms are available to safely and reliably reach the testing position
