EMX2-500N

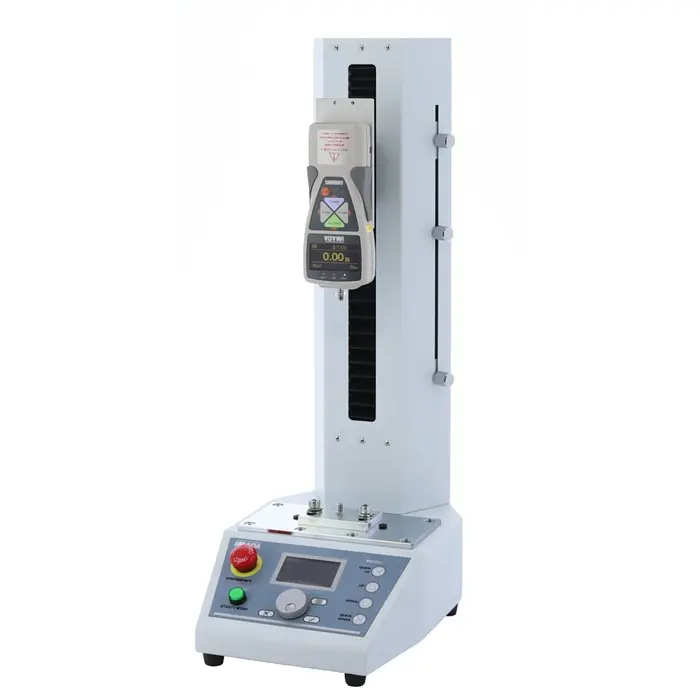

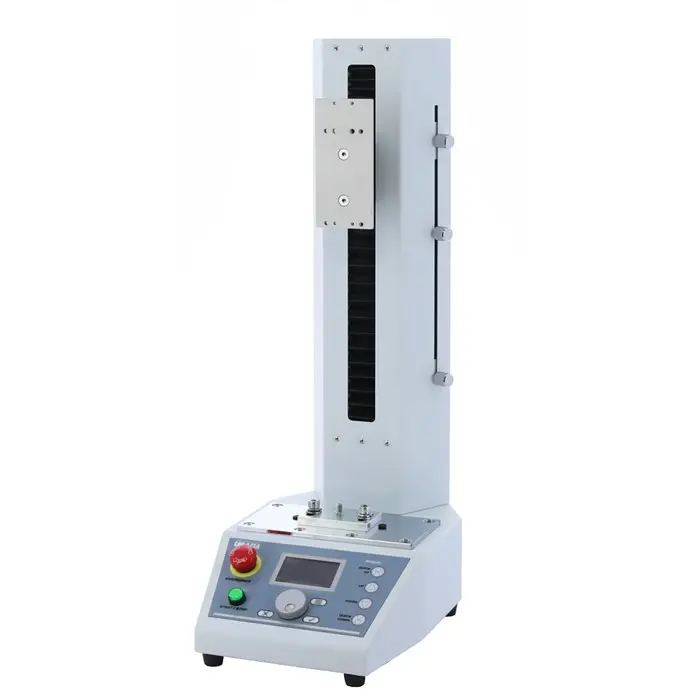

The highly functional motorized test stand EMX2 series achieves highly reproducible force measurement processes. It features digital speed setting from 0.5 to 600 mm/min, travel distance setting, and operation control based on force values, supporting a wide range of force measurement applications. Some functions require connection to a compatible force gauge using a dedicated cable. The ability to memorize up to 10 test condition patterns and the availability of downloadable software help streamline operation setup and improve efficiency.
Tags: Lo-Mid Force, Hi Rigidity, Wide Speed Range, Ext I/O, Contact Detection, Digital Speed Ctrl, Multi Function, Displacement OPT
Contact us for prices
Description
Specifications
- Highly reproducible force measurement is achieved by standardizing test speed, force direction, and stroke, combined with high rigidity (maximum deflection 0.25 mm)
- Interlinking with a force gauge enables operation control such as stop, reverse, and hold by force value, as well as detection of contact and breakage
- Long stroke option (-L) and pre-installed linear scale option (-FA) are available to suit various testing requirements
- LCD panel supports both Japanese and English, with a dial and buttons for high operability; passcode lock settings are also available
- By registering the user and product with IMADA Connected, dedicated software can be downloaded to set operation conditions from a PC, enabling efficient and convenient measurement setup
