Description

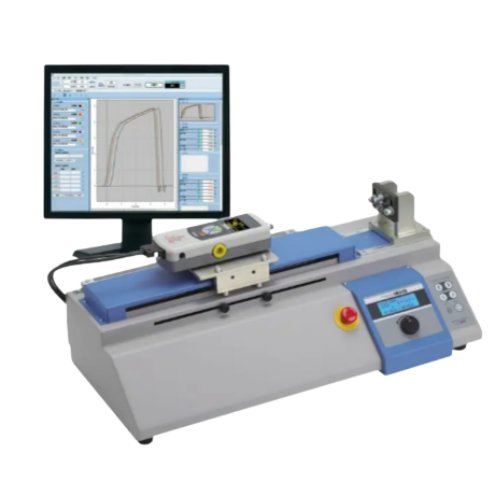

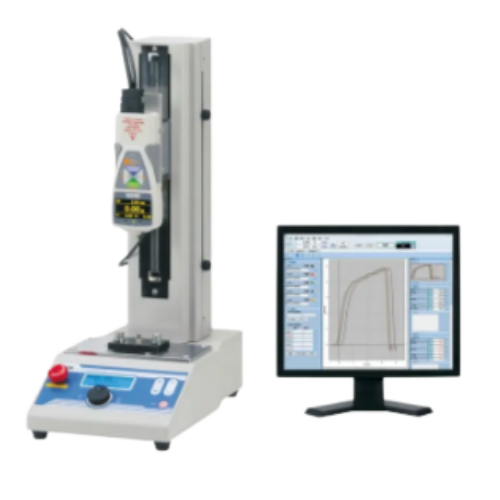

The Imada FSA series is a complete solution for force-displacement measurement, consisting of a force gauge, test stand, cable, and software. Its compact desktop design makes it highly convenient and easy to use, enabling straightforward measurement of mechanical properties such as tension, compression, and peeling force.
Force Displacement Unit by Imada Specifications
CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR FSA SERIES
Features of Force – Displacement Unit by Imada
- Precise Measurement: With a high sampling rate of 2000Hz, it accurately captures force changes and generates smooth force-displacement graphs in real-time.
- Easy Reporting: The unit is equipped with functions to overlay up to 5 graphs and add comments, making it easy to output graphs and statistical data to popular file formats such as WORD, EXCEL, PDF, etc.
- Wide Range of Measurements: By combining various optional attachments, the FSA series can handle a wide range of measurements, including compression and tension tests of various materials, evaluations of spring characteristics, elasticity tests, insertion pressure evaluations of parts, switch characteristic evaluations, peeling tests of adhesive tape, and cushioning material repulsion tests.
- Zero Reset Function: The unit assists force-displacement measurements by allowing for the reset of displacement values at a chosen load value.
Application and use cases for Imada Force Displacement Unit – FSA series
The Imada FSA series is the most advanced unit in the Imada product line and offers the ability to simultaneously verify force and displacement. This makes it an ideal choice for manufacturers who need to understand the characteristics of their products in terms of millimeters of push or pull. The FSA series is especially useful for spring, switch, PET bottle, and adhesive tape manufacturers who require displacement measurements.
