Description

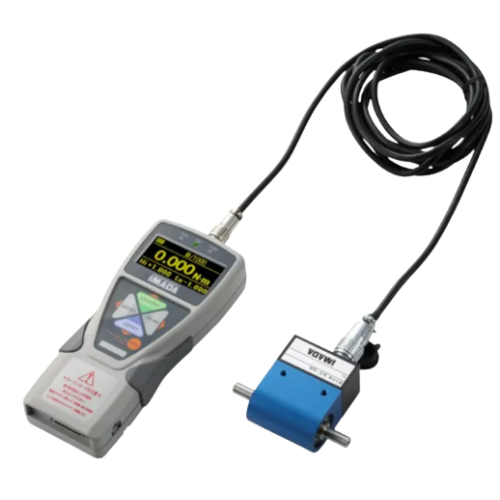

The HTGA series is a high-function rotating torque gauge designed to measure torque up to 5 N-m (500 N-cm). It allows accurate torque measurement of samples that rotate continuously beyond 360 degrees, such as gears and rollers. Along with all the features of the HTGS series, it offers added capabilities like angle input and output, as well as first and second peak detection for more detailed analysis. The standard rotating torque gauge also supports torque measurement up to 5 N-m (500 N-cm) and is ideal for continuously rotating samples. With a high-speed sampling rate of 2000 Hz, it delivers excellent repeatability in peak measurements and smooth, reliable graphing when used with the optional graphing software.
IMADA Rotating Torque Gauge HTGA-RT-5N / HTGS-RT-5N Series Specifications
CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR HTGA-RT-5N / HTGS-RT-5N
Features of Imada Rotating Torque Gauge
- High sampling rate of 2000 Hz for excellent reproducibility, accurately capturing rapid torque changes and precise peak values
- Supports continuous torque measurement while the shaft rotates beyond 360 degrees, making it suitable for applications such as gears and rotating components
- Bright, high-clarity OLED display with a 3-split screen layout that allows flexible viewing of measurement parameters based on user needs
- Part of the Next Series Model with access to IMADA Connected online services (user registration required), including online firmware updates and downloadable additional functions, some available as paid options.
Model-Specific Features
- HTGA-RT-5N: Supports angle measurement when used with a custom-made angle meter
- HTGA-RT-5N: Equipped with a USB memory connector for data storage and transfer
- HTGA-RT-5N: Includes first and second peak detection for advanced torque analysis
- HTGS-RT-5N: Optional accessories such as shaft rotation handles, couplings, and other attachments are available on a made-to-order basis (additional cost applies)
