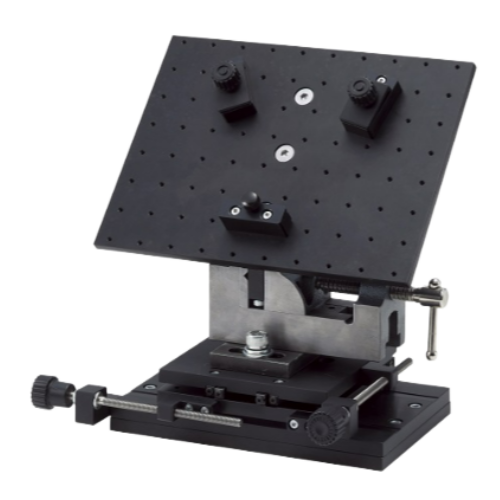

SJS-100N-L/S – Alignment Stage for Solder Joint Strength Test

The SJS-100N-L/S alignment stage is designed for accurate solder joint strength testing of QFP leads and IC chips. It offers precise adjustment for small components and a switchable stage angle for flexible testing setups.

Tags: Fixing PCBs, 45/90 deg switchable, Lo-Mid Force

Contact us for prices

Categories: ,

Description

The SJS-100N-L/S is an alignment stage with a 100 N capacity designed for solder joint strength testing of QFP leads using lead-free solder, as well as IC chips. It enables precise and easy positioning of very small parts, with an adjustable stage angle that can be set to 45 or 90 degrees.

Alignment Stage for Solder Joint Strength Test – SJS-100N-L/S by Imada Specifications

CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR SJS-100N-L/S

SJS-100N-L/S Specifications

Features of SJS-100N-L/S

  • Designed specifically for solder joint strength testing
  • Enables smooth and precise positioning of very small components
  • Adjustable stage angle with 45 and 90 degree settings
