Description

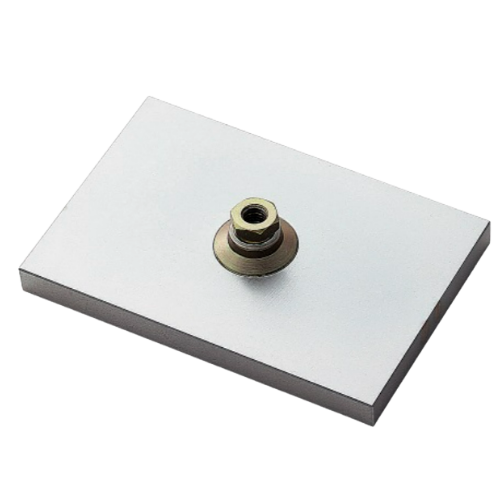

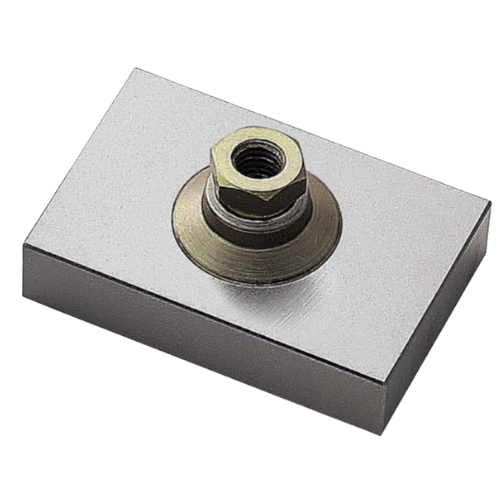

SQ-5030, SQ-5075, and SQ-5150 are rectangular jigs designed for high-load compression testing with a 5000 N capacity. The free-joint mechanism allows movement up to 15 degrees in all directions, helping to ensure accurate measurements. These jigs are suitable for applications such as retort pouch durability testing and ball hardness testing.
Note: the SQ-5030 model does not include the free-joint function.
Rectangular jig – SQ-5030/5075/5150 by Imada Specifications
CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR SQ-5030/5075/5150
Features of SQ-5030/5075/5150
- Suitable for applications such as retort pouch durability testing and ball hardness testing
- Free-joint design allows movement up to 15 degrees in all directions for improved measurement accuracy (available on SQ-5075 and SQ-5150 only)
- Magnetic structure enables quick and easy plate replacement (available on SQ-5075 and SQ-5150 only)
- Custom solutions available to match specific testing needs, including changes in material, size, and capacity
