Work Calculation Module

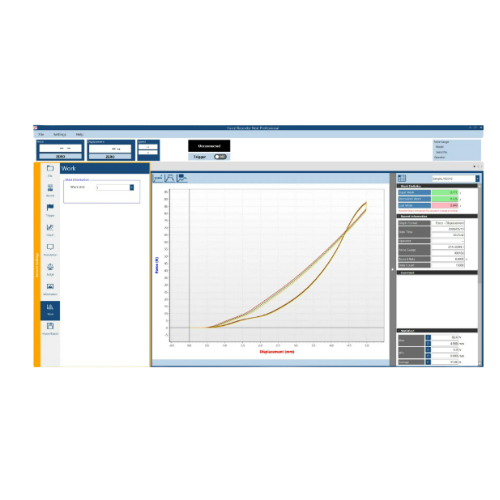

The Work Calculation Module is an optional add-on for the Force Recorder Next series. It automatically calculates and displays the area under the force-displacement curve to determine work, as well as the area under the force-time curve to calculate impulse.
- A valid redemption code supplied with the Download Card Basic is required to download and activate the module.
- This module is not supported with the floating license editions of the Force Recorder Next series, including Force Recorder Next Standard-FLT and Force Recorder Next Professional-FLT.
Tags: Plug-in software, Downloadable product, Work Calculation
Contact us for prices
Description
Specifications
- Automatically calculates the area under the measurement curve to determine work and impulse, with results displayed immediately after analysis.
- Supports a wide range of calculation units, including J, mJ, Nm·rad, and F·s, enabling users to select the unit best suited to their application.
- For force-displacement measurements, the module automatically calculates Input Work (forward movement), Recovered Work (return movement), and Lost Work (the difference between input and recovered work), providing a comprehensive analysis of energy transfer.
- Export calculated work and impulse values directly to CSV files or professional test reports, simplifying data analysis, record keeping, and result sharing.
