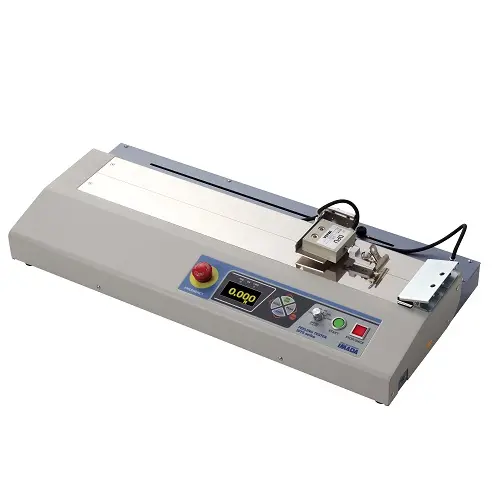

IPTS-5N – Peeling Tester
The Peel Strength Tester has a 5 N capacity and is used to measure the peel strength of cover tapes on embossed carrier tapes containing semiconductors and electronic components, in compliance with JIS and other industrial standards. The Next Series (firmware Ver. 5 or later) provides improved measurement stability with reduced noise, enhanced expandability through optional functions available on a dedicated website (IMADA-Connected.com), and easy access to software and instruction manual downloads.
Tags: Emboss Carrier Tape, Peel Test, Single Touch, Incl Software, Mid-Lo Force
Contact us for prices
Description
Specifications
- Designed for peel testing of embossed carrier tapes in accordance with IEC and JIS standards
- High sampling rate of 2000 Hz enables precise measurement, capturing small force changes and accurate peak values
- User-friendly operation with simple sample setup and one-touch testing by pressing the START button
- Supports detailed analysis by capturing small variations at 2000 Hz and visual comparison using graph overlay (up to 5 graphs) with supplied software
- Next Series (firmware Ver. 5 or later) includes extended functions such as additional features and software downloads from the IMADA download site
