Description

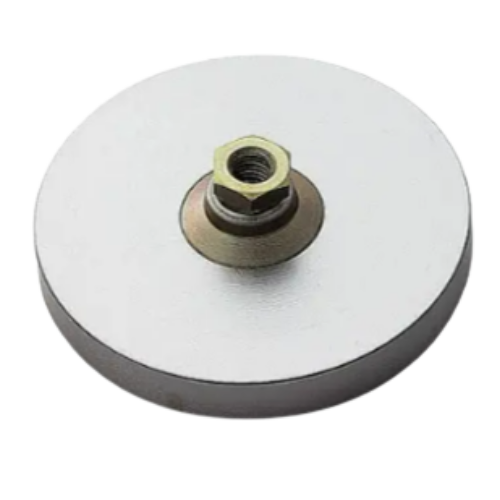

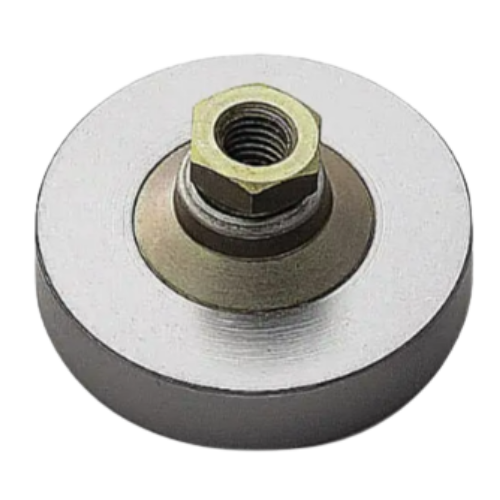

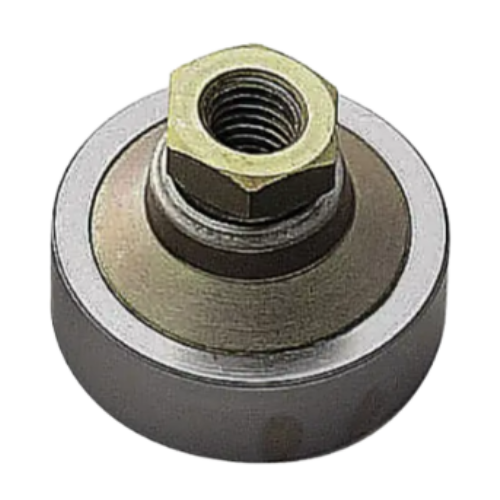

PC-5040, PC-5060, and PC-5100 are disk-shaped jigs designed for high-load compression testing with a 5000 N capacity. Their swivel mechanism, which allows movement up to 15 degrees in all directions, helps ensure accurate and stable measurements. These jigs are suitable for applications such as retort pouch durability testing, ball hardness testing, PET bottle top load (buckling strength) tests, and similar evaluations.
Disk-shaped Jig – PC-5040/5060/5100 by Imada Specifications
CLICK THE LINKS BELOW TO DOWNLOAD SPECIFICATIONS FOR PC-5040/5060/5100
Features of PC-5040/5060/5100
- Suitable for retort pouch durability tests, ball hardness tests, and PET bottle top load (buckling strength) tests
- Swivel design allows movement up to 15 degrees in all directions for accurate measurements
- Magnetic design enables quick and easy plate replacement
- Available in 40 mm, 60 mm, and 100 mm diameters to suit different sample sizes
- Custom options available by modifying material, size, and capacity to meet specific testing requirements
