Switch Operating Force Testing Module

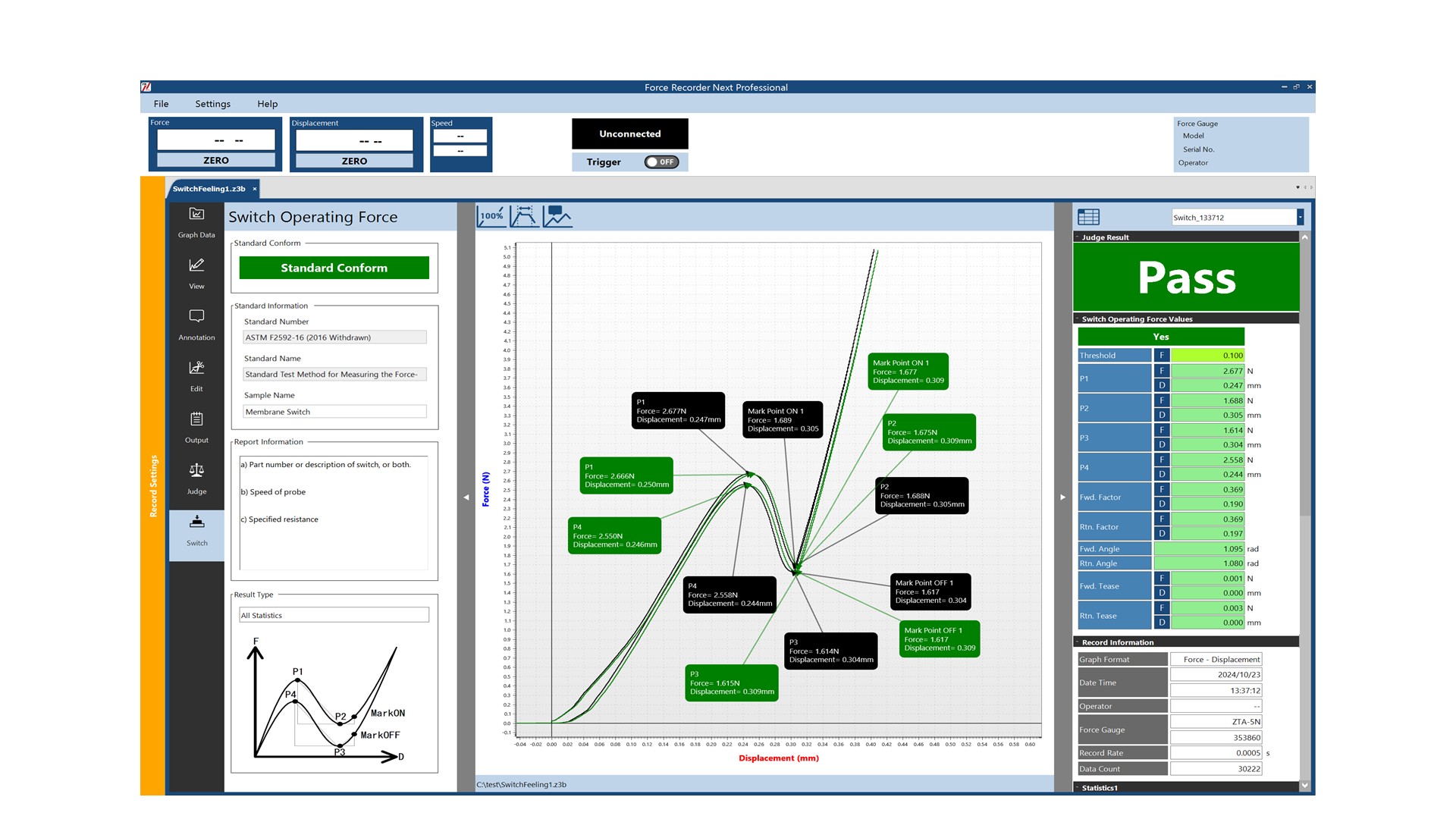

The Switch Operating Force Measurement Module is a plug-in for the Force Recorder Next Series that includes switch feel calculation functions and preset test conditions compliant with relevant standards. It automatically calculates and displays switch characteristics such as click rate based on operating and releasing forces, and also shows conformity judgment results for the selected standard. *Download Card Light is required.
Tags: Plug-in software, Downloadable product, Switch Feeling
Contact us for prices
Description
Specifications
- Measures operating force until activation of push-button type switches, enabling evaluation of switch hardness and click feel by quantifying press and click characteristics
- Automatically judges whether the measurement data conforms to the selected standard and displays the result
- Test conditions compliant with ASTM standards for switch testing are preset for easy setup
- User preset function allows adding custom standards and registering original measurement conditions; three result types are available to suit different measurement needs
- Enables easy output of switch operating test data using dedicated report templates, CSV files, and other formats
